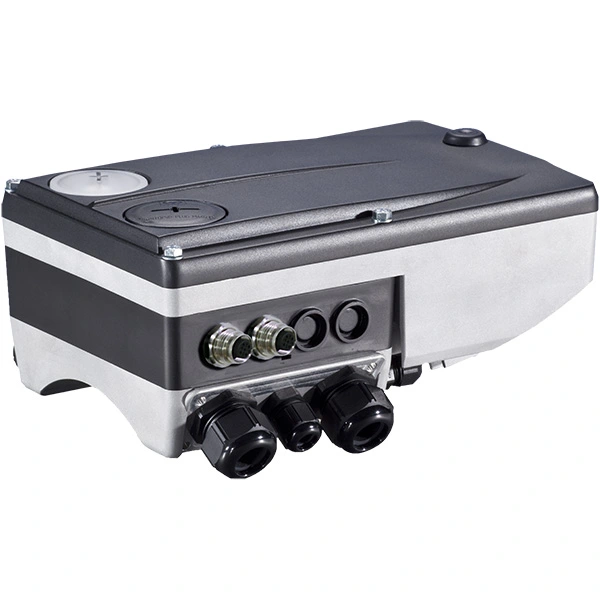

The 8400 motec frequency inverter can be mounted locally on the motor or on the wall. A repair switch can also be used on the wall. The decentralized arrangement significantly shortens the length of the motor cables. This enables even complex machines to be structured clearly.
The requirements of the Ecodesign Directive, Standard EN 50598-2, are met.
Application areas: Traveling and conveyor drives (intralogistics), pumps, fans, …
Highlights
- Easy commissioning with plug technology (plug and drive)
- Compact design
- High protection class IP65, with switch unit IP54
- Integrated switches and potentiometers for quick adjustment of configuration as well as speed and ramp
- Versions with or without repair switch for wall mounting
Technical data and features
| Technical data | 0.37 … 7.5 kW |
|---|---|
| Connections | 3 AC 400 V
3 AC 480 V 1x digital input 2x/5x/8x digital output 1x analog input 0x/1x/2x analog output 1x NO/NC relay Motor temperature monitoring |
| Communication | AS-Interface
CANopen EtherCAT EtherNet/IP PROFIBUS PROFINET |
